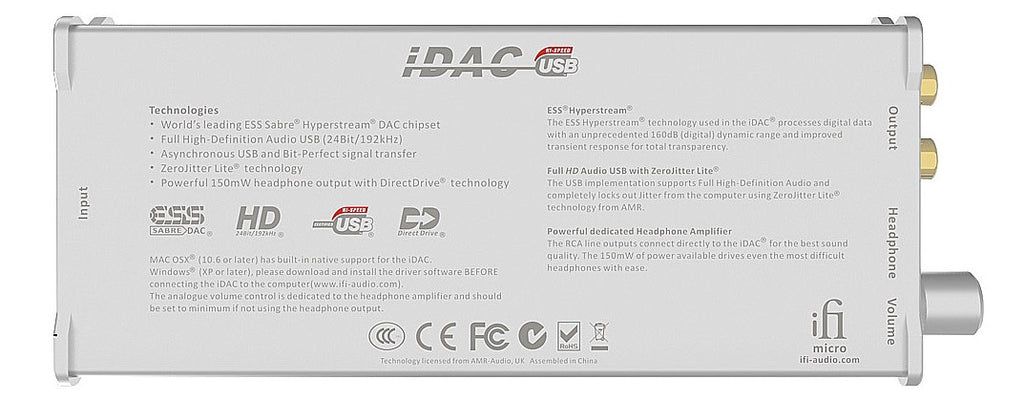

iFi Micro-iDAC

A fantastic dynamic range means more of everything. More detail, more musical, and most of all: more fun. When it’s relaxation time – your ears will be treated to a rarefied, luxurious sound. All your music will sound striking on the iDAC.

Resolution matters. Yet the realism of playback matters more. These are all determined by a number of factors — like the USB interface technology, power supply quality, and the analogue output stage. The iDAC uses a highly-advanced Asynchronous/Jitterless USB interface (trickle-down technology from AMR’s high-end audio equipment) to give not just good but perfect audio transfer.

With 3 dedicated internal power supplies, they provide a clean environment for the DAC to produce high-resolution audio. Augmented by the ESS Hyperstream Chipset — typically reserved for expensive high-end audio equipment, music reproduction is startling realistic.

Specifications:
Signal to Noise Ratio: >111dB(A)
Dynamic Range(-60dBFs): >111dB(A)
Crosstalk: <-102dB(1KHz)
Total Harmonic Distortion(THD): <0.005%
Jitter: Below measurement limit
Frequency Response: 3Hz to 33KHz + 0.1dB/0.3dB



Headphone section:
Output Power: >150mW (15Ω)
Output Voltage: >3.3V (>100Ω)
Signal to Noise Ratio: >97dB(A) (400mV/300R)
Total Harmonic Distortion: <0.003% (400mV/300R)
Output Impedance:(Zout): <1Ω
Power Consumption: < 2.5W
Dimensions: 158(l)x68(w)x28(h)mm
Weight: 193g(0.43lbs)
